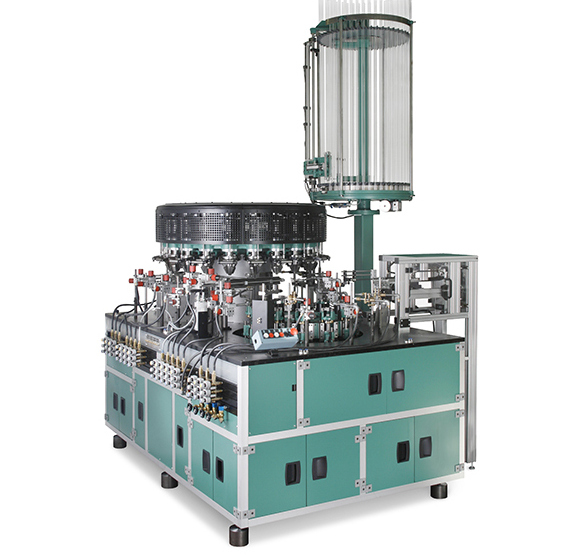

Vial forming machine RP 20 with automatic tube feeder

Vertical 20/12-heads indexing motion machine for the production of tubular glass vials

Technical data

Operating range
Working range of chucks: Ø 13 – 30 mm
alternative Ø 18 – 35 mm
min. glass tube diameter: 8 mm
max. glass tube diameter: 42 mm
other working ranges on request

Length of finished vial:
min. 20 mm  cylindrical length
max. 115 mm  total length

For the production of tubular glass vials with all main types of vial necks, such as penicillin neck, screw neck and blow back neck.

Output
Up to 2.520 pieces per hour depending on the machine configuration and the diameter of the glass (max. mechanical speed).

Dimensions and weight
Length: 2.320 mm
Width: 2.150 mm
Height with tube feeder: 3.350 mm
Weight: 2.600 kg

Consumption
Consumption values for gas, air and oxygen depend on the glass tube and the type of gas used. Detailed information will be supplied on request.

Features
Automatic tube feeder with magazine
Forming devices with servodrive
High-Speed Index Drive HSI

Option
Tube loader type RLG for feeding the glass tubes into the magazine directly from tubing bundle
Alkalinity lowering system

 Further details on request
