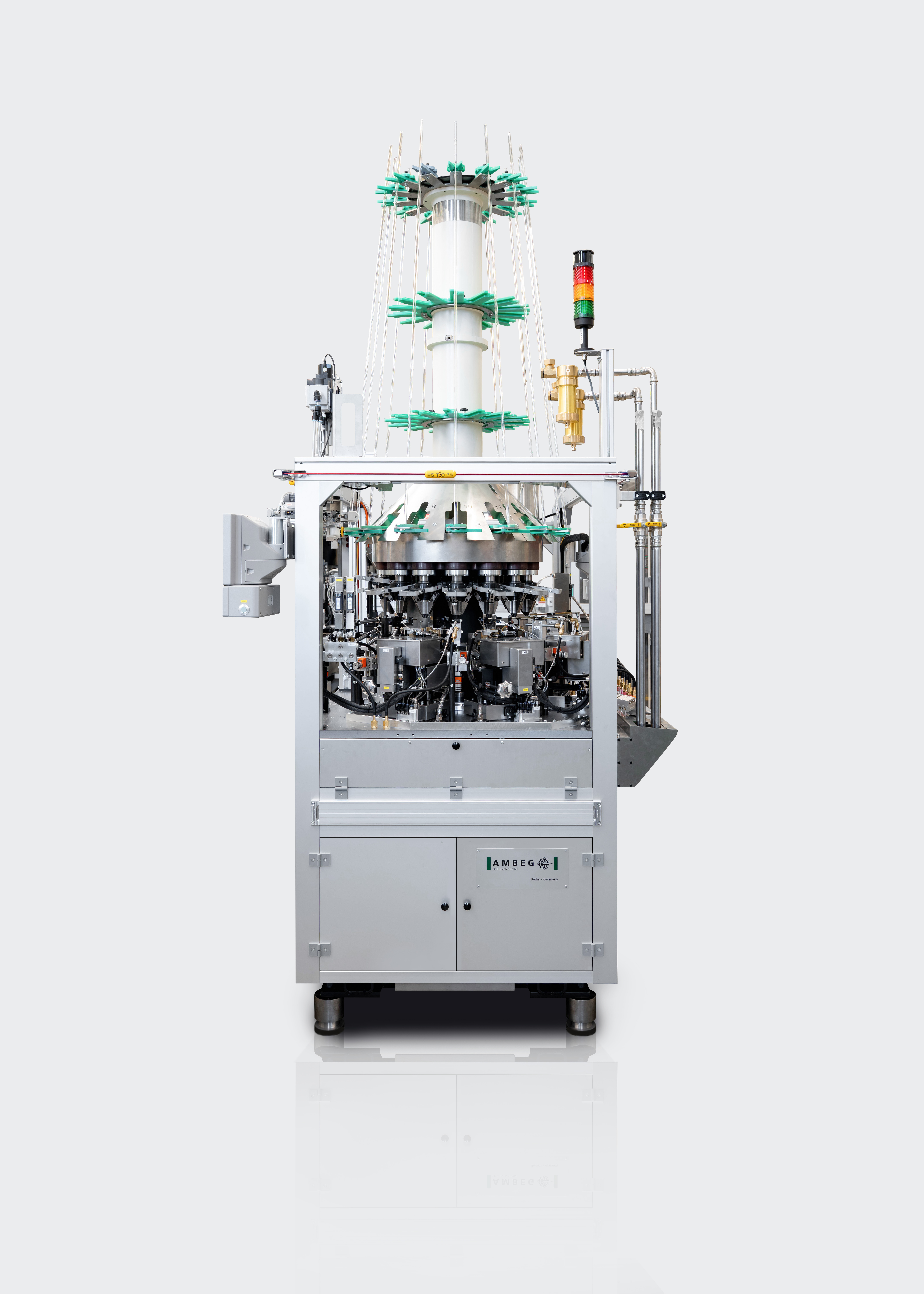

Cartridge forming machine KM 14

Vertical 14/9-heads indexing motion machine for the production of cartridges

Technical data

Operating range
Working range: Ø 6 – 14 mm
other working ranges on request

Length of finished cartridge:
min. 20 mm  cylindrical length
max. 85 mm  total length
higher total length on request
For the production of tubular glass cartridges with all main types of cartridge necks.

Output
Up to 3.900 pieces per hour depending on the machine configuration and the diameter of the glass (max. mechanical speed).

Dimensions and weight
Length: 1.500 mm
Width: 1.200 mm
Height with tube feeder: 3.350 mm
Weight: 1.200 kg

Consumption
Consumption values for gas, air and oxygen depend on the glass tube and the type of gas used. Detailed information will be supplied on request.

Features
High-speed index drive HSI
Forming devices with servodrive
Preloading magazine on top of the chucks

Option
Tube loader type RLGH for feeding the glass tubes into the preloading magazine directly from tubing bundle.
Tube feeder type RZ 8 for feeding the glass tubes into the preloading magazine.

Further details on request
